- Capacity: 5T, 10T, 20T, 50T, 100T, 200T, 300T, 500T
- Applicable Raw Materials: used vegetable oil, used cooking oil, waste animal greases
- End Products: Bio-diesel, Fatty Acid Methyl Ester
- Catalysts Type: acids, alkalis, alcohols
- Heating Fuel Type: Heating Fuel Type: oil, gas, electricity
- Cooling Type: circulated water
- Work Pressure: -0.098Mpa to 0.05Mpa
- Max. Temperature: 450 ℃
- Work Type: Batch; Continuous
- Installation Type: Field Installation
- Design Life: 20 years
1. Advantages of Henan Barui Biodiesel production machine and technology
A typical Biodiesel production machine process machine includes animal grease or vegetable oil pretreatment unit, esterification unit, trans-esterification unit, methanol recycling unit and biodiesel refining unit.
Meanwhile, our process has 3 insightful advantages:
- Suitable for more kinds of raw material oil!!!
- This equipment can be fed with soybean oil, jatropha oil, palm oil, rapeseed oil, canola oil, used cooking oil, frying oils, animal fats…
- The quality of biodiesel is high!!!
Our crude biodiesel refining unit adopt biodiesel distillation tower, continuous distillation process. That improves the quality of biodiesel, and increase the quantity of final products. Comparing with common distillation, our crude biodiesel distillation tower can control different fractions better. The quality of produced biodiesel meet the U.S. Department of Energy’s request on ASTM B100 Specifications (Click to reach https://store.astm.org/d6751-24.html).
The wastes during the production are in a good control, no acid residues pollution!!! Comparing with traditional sulfur acid catalytic reaction, our process adopts organic acid. That is more environmental friendly.

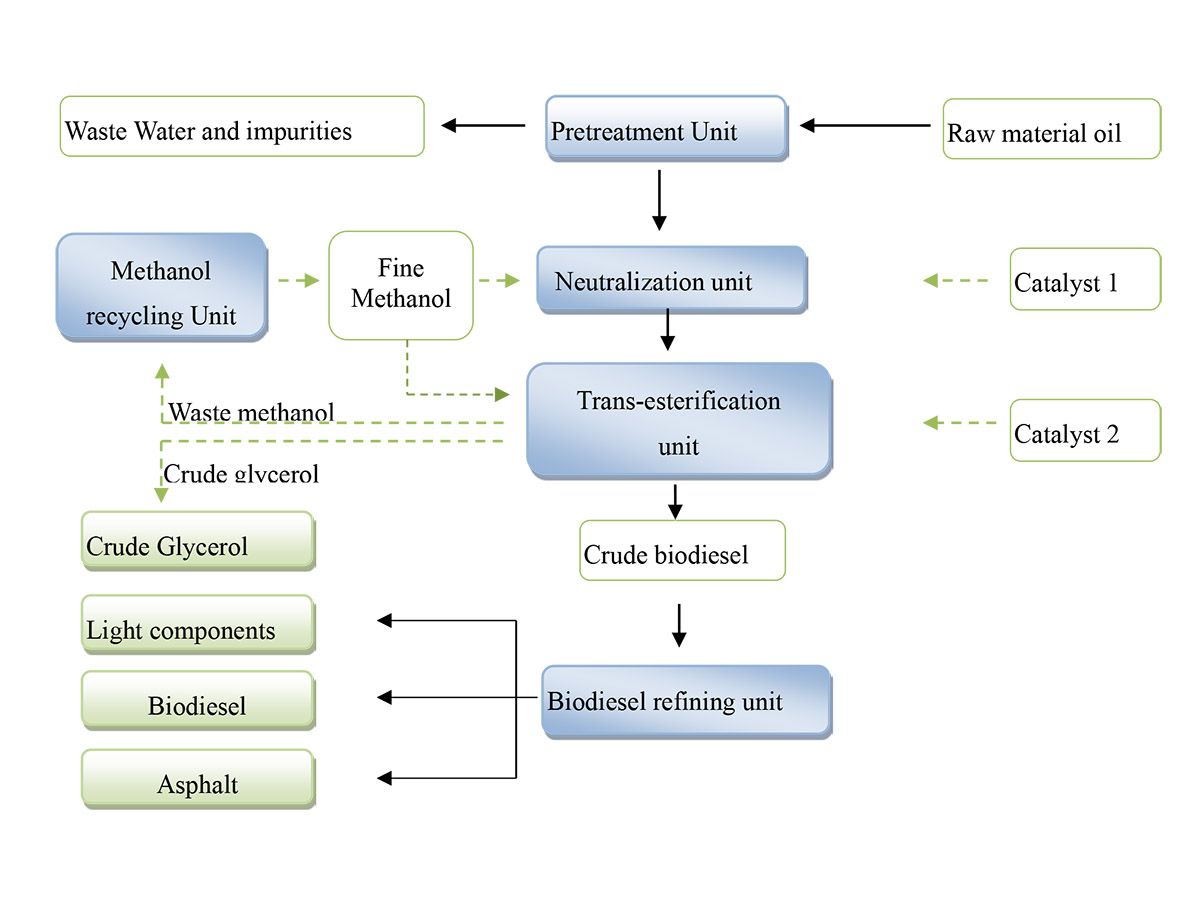

2. A typical biodiesel production machine process flow is as follows

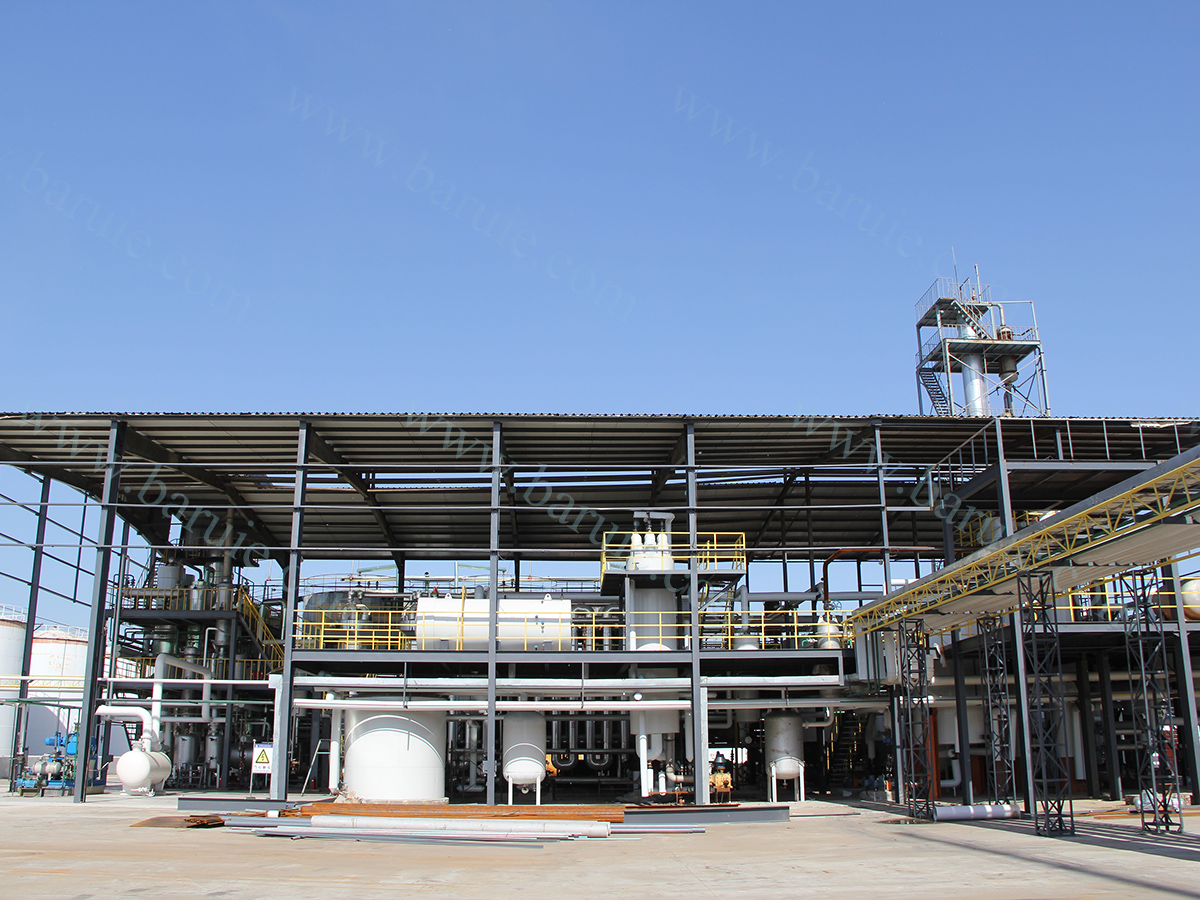

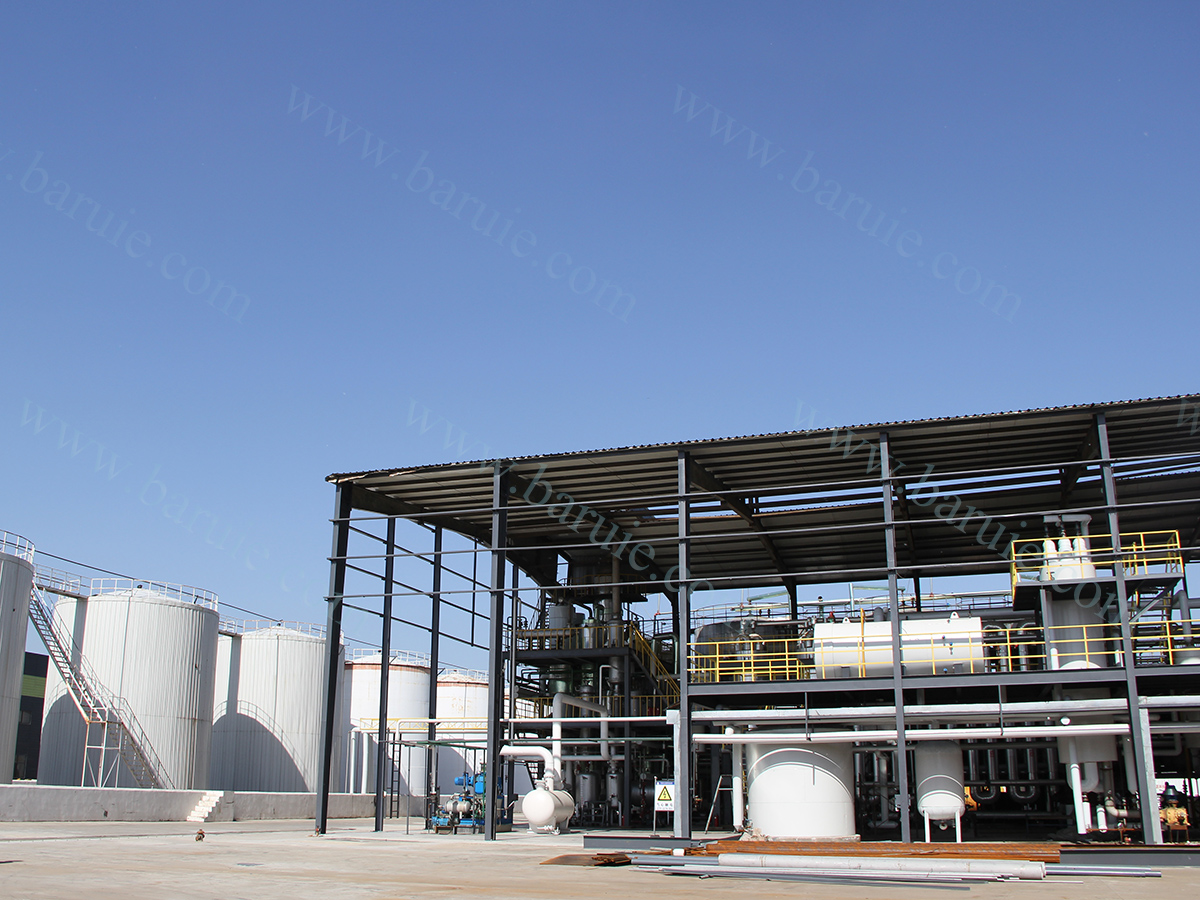

3. 100TPD to 160TPD biodiesel production machine factory is as below

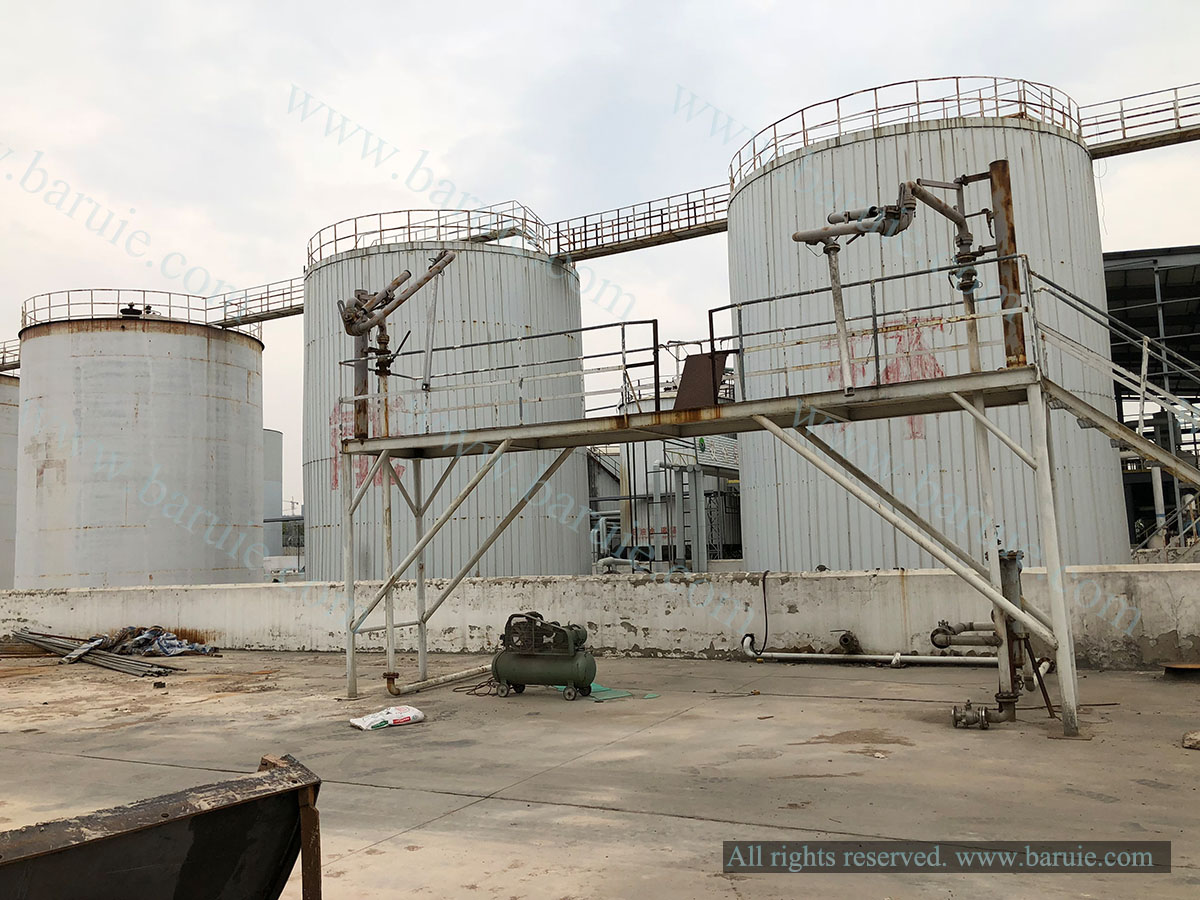

4. What is a good capacity Tanks Zone for a Biodiesel production factory?
Firstly, biodiesel factory tanks zone should include the following type tanks:
- Raw material oil tank: vertical dome tank;
- Diesel tanks — Vertical dome tank;
- Light components tanks — Vertical dome tank with internal floating roof;
- Plant Asphalt tank — Internal tube heating tank
Secondly, it is confirm the tank volumes, the common volumes are as below:
- 100 m3;
- 300 m3;
- 500 m3;
- 1000 m3;
- 3000m3;
- 5000m3;
- 10000m3
Finally, it is to do budget analysis and make construction plan. A typical effect view is as below:
For the limit of content, if you want to get more details of biodiesel production machine, please see our articles of 150T biodiesel production plant show (Here is the link: https://baruie.com/daily-100ton-biodiesel-production-plant-design-1/).
5. FAQ
If you want to get more information about biodiesel industry, technical parameters, equipment trade or others, please feel free to contact us. We will reply your request with our great pleasure.
